Description

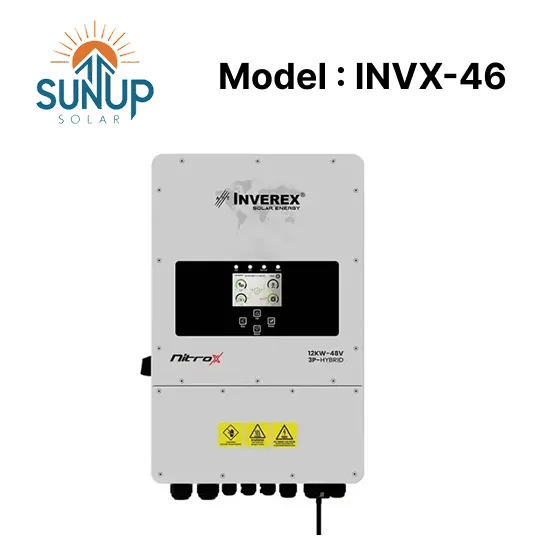

Inverex Nitrox 12Kw 48V Three Phase Hybrid Solar Inverter – Price in Pakistan & Key Features
At Sunup Solar Agency, we are proud to offer the Inverex Nitrox 12Kw 48V Three Phase Hybrid Solar Inverter at an incredible price of Rs. 791,000 as of May 18, 2025. This high-performance hybrid solar inverter is specifically designed to provide uninterrupted power, making it the ideal choice for both residential and commercial solar installations.
Why Choose Inverex Nitrox 12Kw Hybrid Solar Inverter?
The Inverex Nitrox 12Kw 48V Three Phase Hybrid Solar Inverter is engineered with advanced technology to seamlessly manage power from solar panels, batteries, and the grid. Here’s what makes it stand out:
- Compatible with Inverex Power Cube: Allows for flexible energy storage and management.
- External Light Indicator: Instantly displays system status, making it easy to monitor.
- Plug & Play Installation: Simply connect and power up—no external power required.
- IP65 Waterproof Design: Engineered to withstand harsh weather conditions for enhanced stability.
- Easy Maintenance: External design allows for quick replacement of faulty equipment.
- SOLARMAN App Monitoring: End-users can monitor energy yields in real time through the SOLARMAN App.
Technical Specifications of Inverex Nitrox 12Kw Hybrid Solar Inverter
| Category | Details |
|---|---|
| Model | Nitrox 12Kw 48V |
| Rated Power | 12,000W |
| Voltage | 48V DC |
| Phase Type | Three Phase |
| Inverter Type | Hybrid Solar Inverter |
| Communication Interface | RS485, Wi-Fi (via SOLARMAN App) |
| Protection Level | IP65 (Waterproof & Dustproof) |
| Monitoring App | SOLARMAN App |
| Installation Type | Plug & Play, no external power required |
| Environmental Rating | Weather Resistant, Ideal for Outdoor Use |
| Maintenance | Easily replaceable external components |
Technical Data – VEYRON II 6000-48
| Category | Details |
|---|---|
| Rated Power | 6000W |
INPUT
- Voltage: 230 VAC
- Selectable Voltage Range:
- 170-280 VAC (For Personal Computers)
- 90-280 VAC (For Home Appliances)
- Frequency Range: 50 Hz/60 Hz (Auto sensing)
OUTPUT
- AC Voltage Regulation (Battery Mode): 170-280 VAC (For Personal Computers)
- Overload Capacity: “5s @ ≥150% load; 10s @ 110%~150% load”
- Efficiency (Peak): 90%
- Transfer Time:
- 10 ms (For Personal Computers)
- 20 ms (For Home Appliances)
- Waveform: Pure sine wave
- Dual Outputs: Yes
BATTERY
- Battery Voltage: 48 VDC
- Floating Charge Voltage: 54 VDC
- Overcharge Protection: 66 VDC
SOLAR CHARGER & AC CHARGER
- Solar Charger Type: MPPT
- Maximum PV Array Open Circuit Voltage: 500 VDC
- Maximum PV Array Power: 6500W
- MPP Range @ Operating Voltage: 120 ~ 430 VDC
- Maximum Solar Charge Current: 120A
- Maximum AC Charge Current: 120A
- Maximum Charge Current: 120A
- Maximum Solar Input Current: 27A
PHYSICAL
- Dimension (D x W x H): 140 x 295 x 468 mm
- Net Weight: 11.0 kg
- Communication Interface: RS485, RS232, Optional for Wi-Fi (Built-in BMS)
OPERATING ENVIRONMENT
- Humidity: 5% to 95% Relative Humidity (Non-condensing)
- Operating Temperature: -10°C to 50°C
- Storage Temperature: -15°C to 60°C
Buy Inverex Nitrox 12Kw Hybrid Solar Inverter in Pakistan
Order your Inverex Nitrox 12Kw 48V Three Phase Hybrid Solar Inverter today from Sunup Solar Agency and benefit from reliable energy solutions with cash-on-delivery service across Pakistan. Visit our platform to explore more Inverex products and solar components at competitive prices.
Documentation & Support
For detailed specifications and technical information, access the official Inverex Nitrox 12Kw 48V Three Phase Hybrid Solar Inverter documentation.
